Omron MX2 Variable Frequency Inverters in stock
Dear Customers,
I am glad to inform you that we continue to expand our stock of automation components for industrial / smart home application in Vilnius, Lithuania.

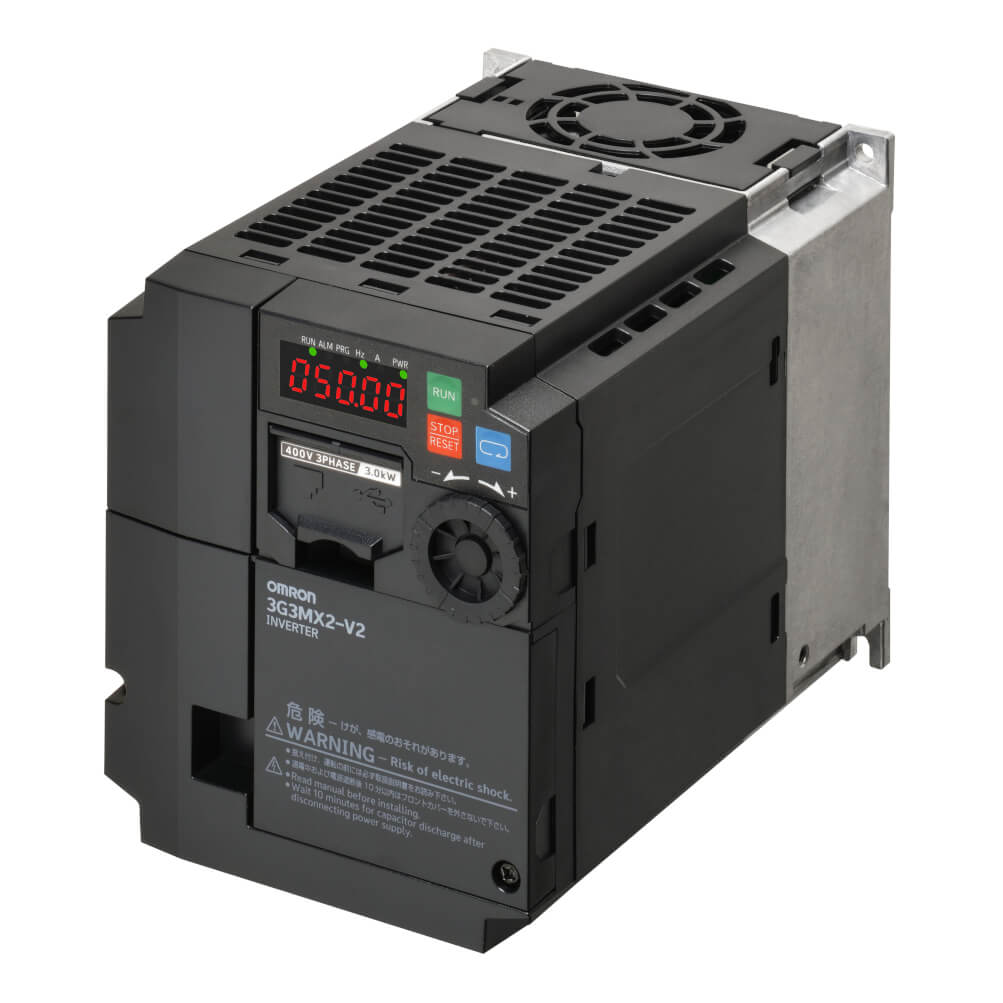

Omron MX2 Variable Frequency Drives is compact series of frequency inverters designed for drive machines. Already in stock. Check the availability and prices here.
Key Features
Torque control in open loop
· The MX2 delivers 200% starting torque near stand-still (0.5 Hz) and can operate in torque control in open loop mode.
· Ideal for low to medium torque applications
Easy network integration
· Built-in RS485 Modbus communications and standard industrial networks, such as EtherCAT (compliant with CoE - CiA402 Drive profile -), MECHATROLINK-II, DeviceNet, Profibus or CompoNet as options.
Built-in safety
· Safety is embedded in the MX2, according to ISO 13849-1, Cat 3, with two safety inputs and an External Device Monitoring (EDM) output.
· No external contactors on the motor side are required, meaning simpler wiring for the user.
Positioning functionalities
· The MX2 can solve simple positioning tasks and speed synchronization without the need for an external controller
· Ideal for modular machines where moderate positional accuracy is required
High programming functionalitiies
· Intuitive and user friendly flow chart programming allows to create programs with up to 1000 lines of code and 5 tasks running in parallel
Technical details
| Model 3G3MX2 | Specifications |
|---|---|
| Power supply and capacity | |
| Three-phase 200 V | 0.1 to 15 kW(ND) |
| Three-phase 400 V | 0.4 to 15 kW(ND) |
| Single-phase 200 V | 0.1 to 2.2 kW(ND) |
| Power supply and capacity | · V/F control · Sensorless vector control |
| Input/ output | |
| Qty of multi-function I/O points | · 7 inputs · 2 transistor outputs · 1 relay output |
| Analog I/O | · 2 inputs (0 to 10 V, 4 to 20 mA) · 1 output (0 to 10 V) |
| Braking | · Braking resistor connection · Regenerative Braking Unit connection · Regenerative Braking Unit + braking resistor connection |
| Frequency | |
| Frequency setting range | 0.01 to 590 Hz |
| Frequency output method | Line-to-line sine wave PWM |
| Installation and wiring | |
| Side-by-side mounting | Yes |
| Removable terminal block | No |
| Power supply and motor wiring | Bottom wiring |
| Main functions | |
| Multistep speed control | 16 steps + jog |
| Carrier frequency setting | 2 to 15 kHz (default setting: 5 kHz) |
| Torque assist function | Auto/manual torque assist |
| PID function | Yes |
| Absolute value positioning | No |
| Emergency shut-off | Yes |
| 0-Hz domain sensorless vector control | No |
| Tripless function | Yes |
| Momentary power interruption restart | Yes |
| Multiple rating | Double ratings |
| Permanent magnet motor control | Yes |
| Starting torque | 200% at 0.5 Hz |
| PLC functionality (Drive Programming) | Provided |
| Communications | Optional EtherCAT communication unit |
| Safety approvals | · ISO 13849-1 (Cat.3/PLe) · IEC 60204-1 Stop Category 0 |
References
Brochure created by Omron “Sysmac: A Fully Integrated Platform”[ https://files.omron.eu/downloads/latest/brochure/en/p079_sysmac_a_fully_integrated_platform_brochure_en.pdf?v=2]
Brochure created by Omron “MX2 Inverter. Born to drive machines”[ https://files.omron.eu/downloads/latest/brochure/en/mx2_inverter_brochure_en.pdf?v=1]
